Customized Design Slipform Paver for Soil Shoulder Construction
Summary:
A soil shoulder paver is a specialized equipment used for soil shoulder construction, with the following significant characteristics:
1. Targeted design: Its size and structure are customized for the narrow space and special shape of the earth shoulder, which can meet the construction requirements of the earth shoulder.
2. Efficient construction: significantly improving construction efficiency, compared to manual paving, it can complete the same length of soil shoulder construction in a shorter time.
3. Stable paving quality: Ensure the flatness and compactness of the soil shoulder, and reduce maintenance costs in the later stage.
4. Flexible operation: It can be adjusted and operated flexibly according to the actual situation on site to adapt to different construction environments. Whether on flat roads or on slopes, paving work can be completed smoothly.
5. Save manpower: reduces reliance on a large amount of manual labor and reduces the labor intensity of construction personnel.
6. Cost control: Reasonable equipment prices and efficient construction efficiency contribute to overall project cost control.
In short, the soil shoulder paver plays an important role in road construction, providing strong guarantees for the high-quality construction of soil shoulders.
Technical parameters:
| item | unit | Parameters |
| Product model | TLJ1000 |
| 1. Power system parameters (original vehicle parameters, taking Vogler 1800 as an example) |
| Engine brand | | Deutz diesel engine |
| Engine model | | Modified engine model |
| Engine power | kw/r/min | 120/2300 |
| 2. Walking system |
| Maximum paving speed | m/min | 10 |
| Maximum walking speed | km/h | 2 |
| 3. Material conveying system |
| Load capacity of hopper | t | 12 |
| Inner width | mm | 3050 |
| Maximum feeding speed | m/min | 20 |
| 4. Shoulder soil mold device |
| Quantity of compactors | 台 | 2 |
| Width hydraulic adjustable | mm | 70~1000 |
| Maximum thickness | mm | 500 |
| Thickness hydraulic adjustment range | mm | 1st gear 0~380 /2nd gear 220~500 |
| Width hydraulic adjustment amount | mm | 300 |

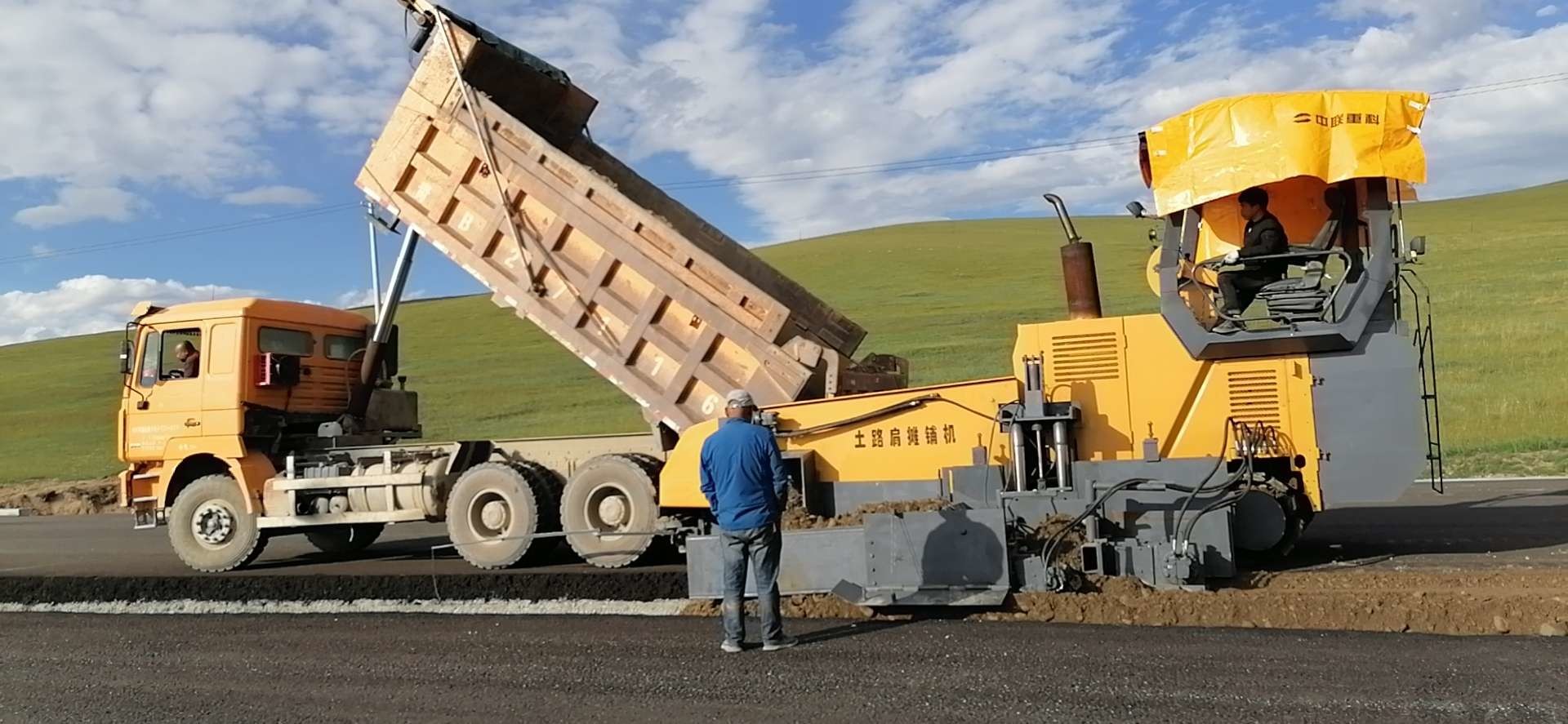

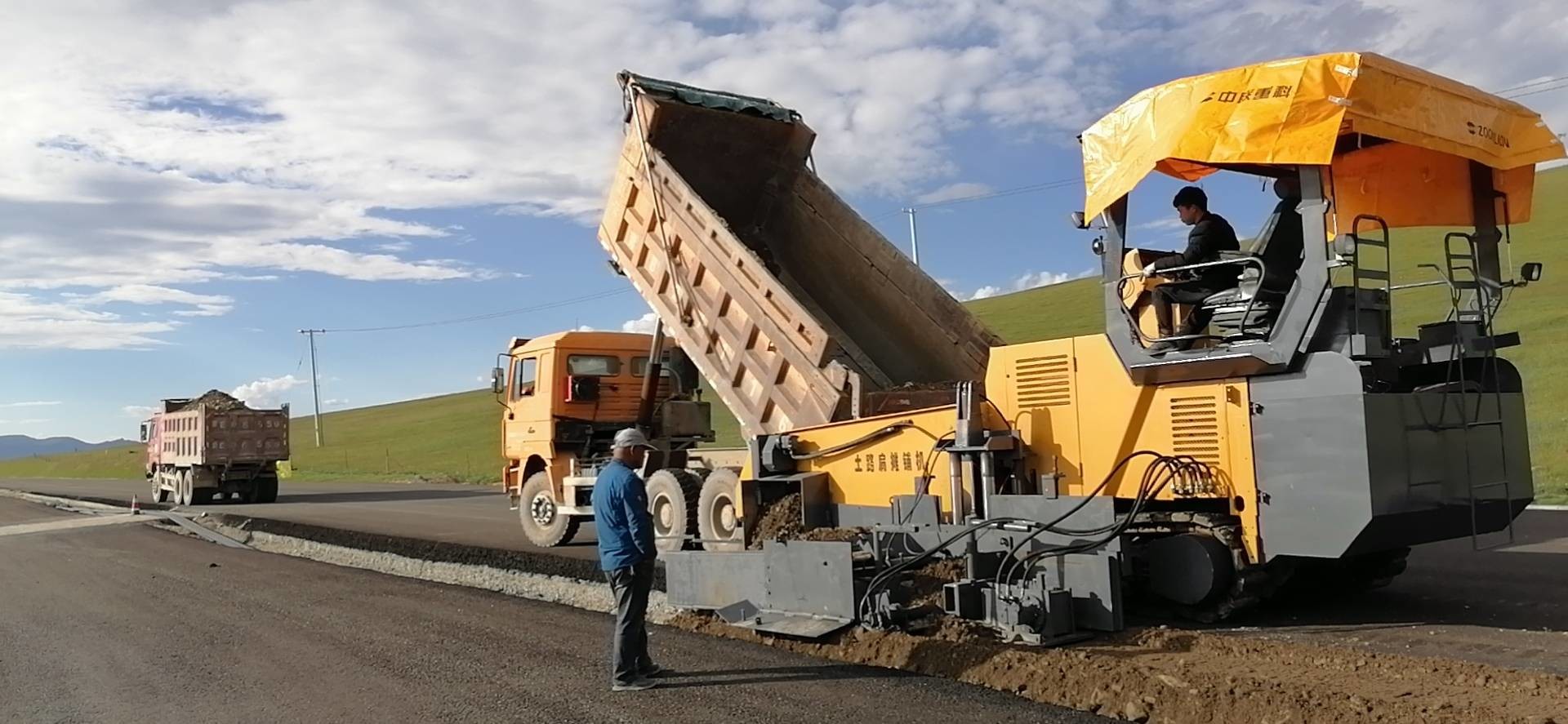

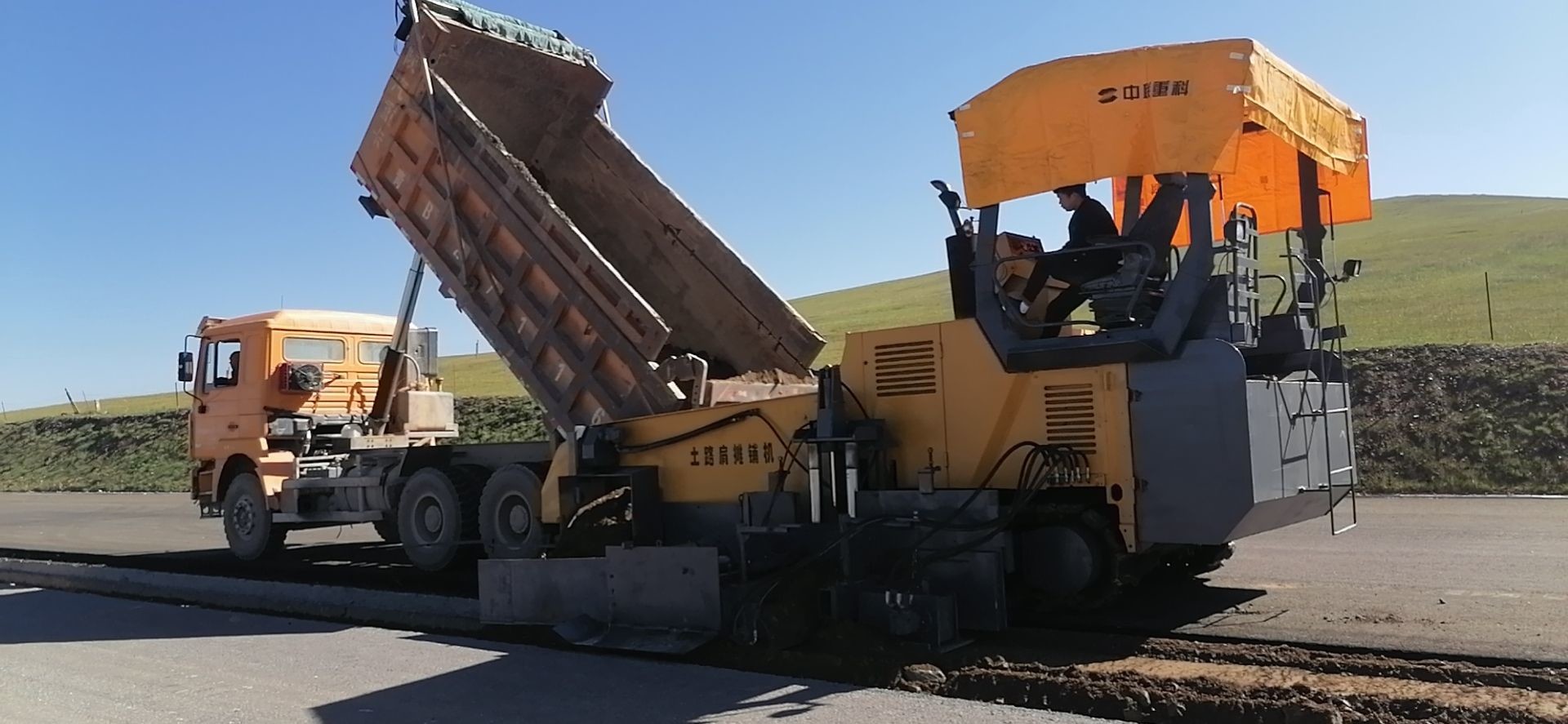

Cases:
Product Tags:
|
|

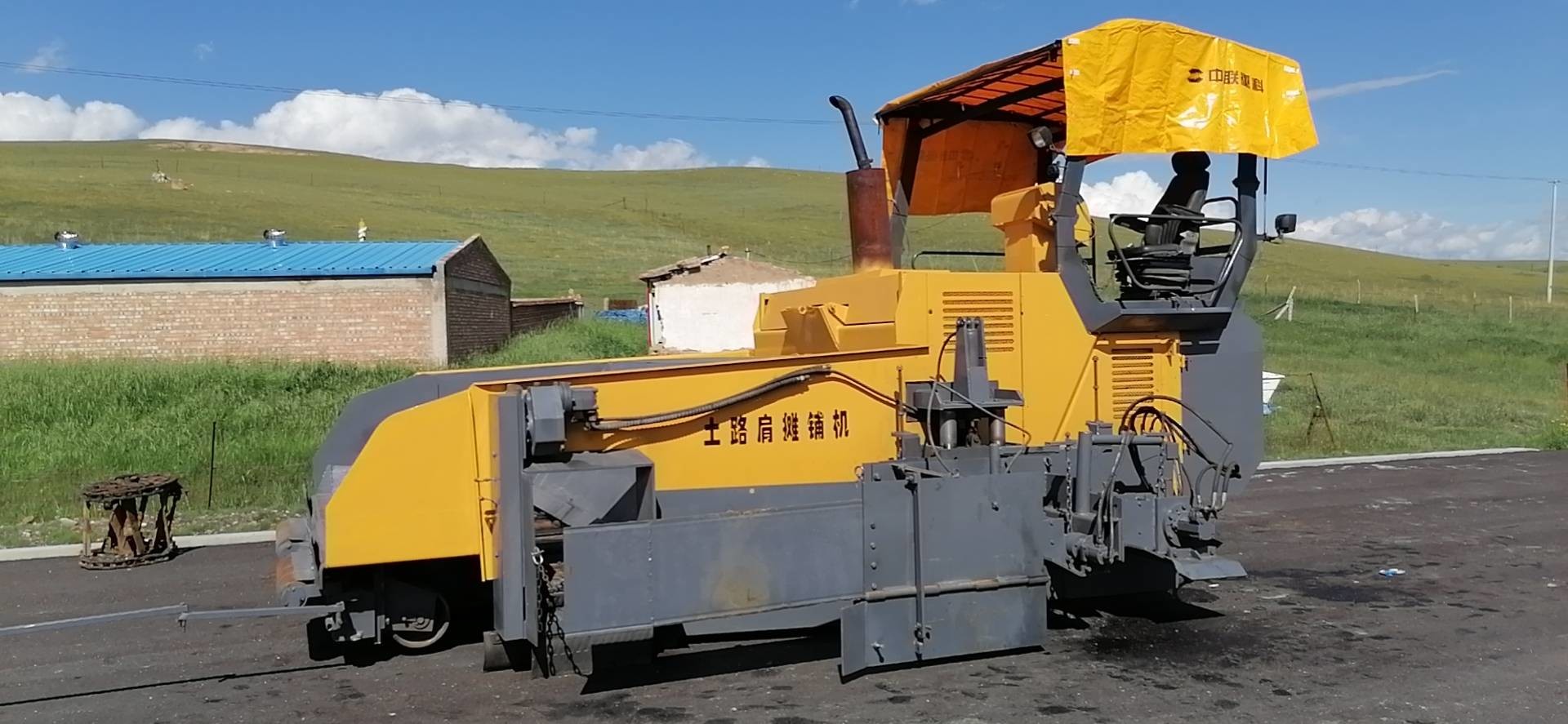

Customized Design Slipform Paver Machine For Soil Shoulder Construction Images
|
